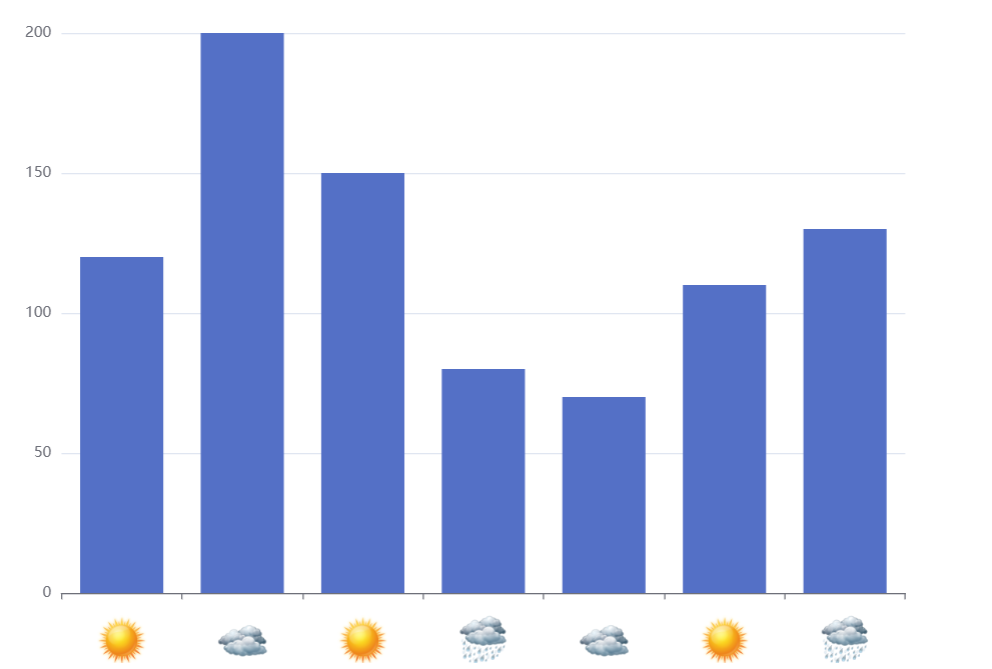

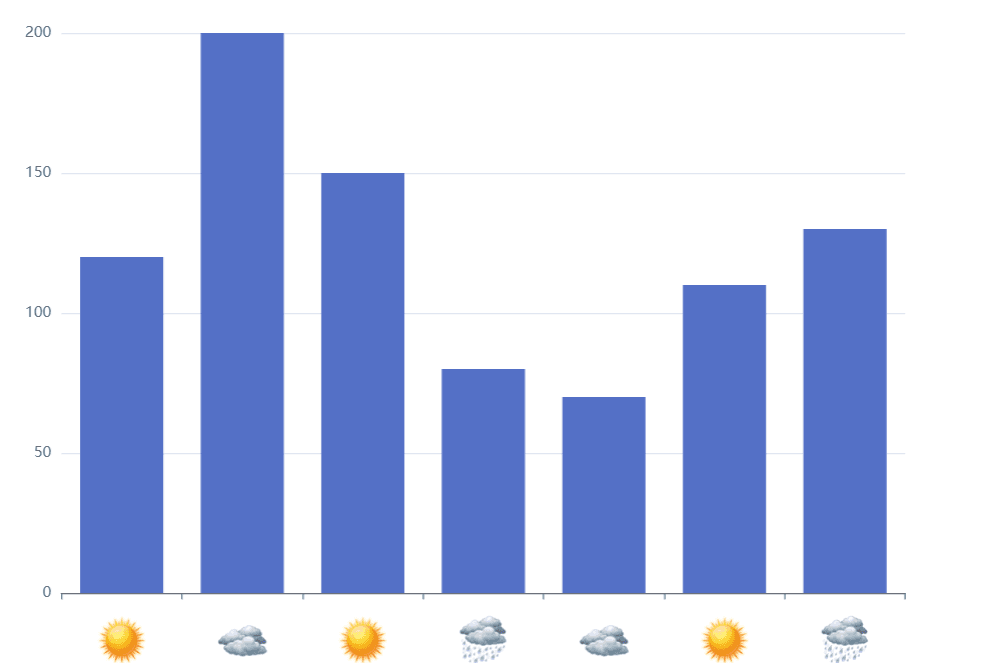

echarts根据数据类型自定义X轴背景色或背景图

发布于：2024年06月20日
更新于：2024年07月05日

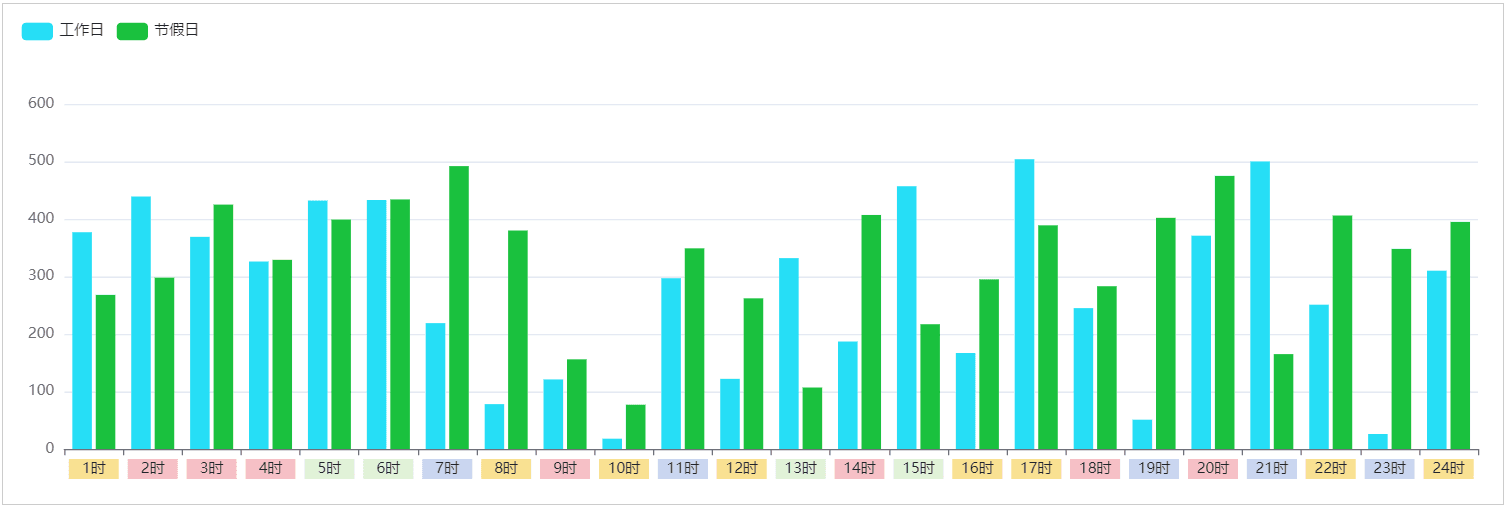

#效果

#代码

html
<body>
  <div id="map" style="margin: 0 auto;width: 1200px;height:400px;border: 1px solid #ccc;"></div>

  <script src="https://cdn.jsdelivr.net/npm/echarts/dist/echarts.min.js"></script>
  <script>
    const myChart = echarts.init(document.getElementById('map'));

    const typeColors = {
      jian: { backgroundColor: '#F6C0C6', width: 40, height: 16 },
      feng: { backgroundColor: '#F9E192', width: 40, height: 16 },
      ping: { backgroundColor: '#CAD6F0', width: 40, height: 16 },
      gu: { backgroundColor: '#E1F1D6', width: 40, height: 16 }
    }

    const typeMap = { "jian": '尖', "feng": '峰', "ping": '平', "gu": '谷' }

    function generateRandomData() {
      return Array.from({ length: 24 }, (_, index) => {
        const type = ["jian", "feng", "ping", "gu"][Math.floor(Math.random() * 4)];
        return {
          value: Math.floor(Math.random() * 500 + 10),
          value2: Math.floor(Math.random() * 500 + 10),
          date: index + 1 + "时",
          type: type,
          color: typeColors[type]
        };
      });
    }

    const data = generateRandomData()
    const xAxisData = data.map(item => item.date)
    const seriesData = data.map(item => item.value)
    const seriesData2 = data.map(item => item.value2)



    const option = {
      tooltip: {
        trigger: 'axis',
        formatter: function (params) {
          const index = params[0].dataIndex
          const type = data[index].type;
          const date = data[index].date;

          return typeMap[type] + date + '<br>' + params.map((item, index) => {
            return `${item.marker} ${['工作日', '节假日'][index]} ${item.value} kWh`
          }).join("<br>")
        }
      },
      legend: {
        top: '10', // 图例显示在顶部
        left: '10', // 图例水平居中
      },
      color: ['#26def6', '#1ac13e'],
      grid: {
        containLabel: true,
        top: '20%',
        left: 20,
        right: 20,
        bottom: 20
      },
      xAxis: {
        type: 'category',
        data: xAxisData,
        axisLabel: {
          interval: 0,
          color: '#1D2129',
          formatter: function (value, index) {
            var type = data[index].type;
            console.log(`{${type}|${value}}`);
            return `{${type}|${value}}`
          },
          rich: typeColors
        }
      },
      yAxis: {
        type: 'value',
      },
      series: [
        {
          name: '工作日',
          data: seriesData,
          type: 'bar'
        },
        {
          name: '节假日',
          data: seriesData2,
          type: 'bar'
        },
      ]
    };


    myChart.setOption(option);

  </script>
</body>
